2025 North SONAR Prime Edition



2025 North SONAR Prime Edition

85004.250202

ALUMINIUM & E-GLASS FOIL EDITION

*Compatible with all North products and fully upgradable*

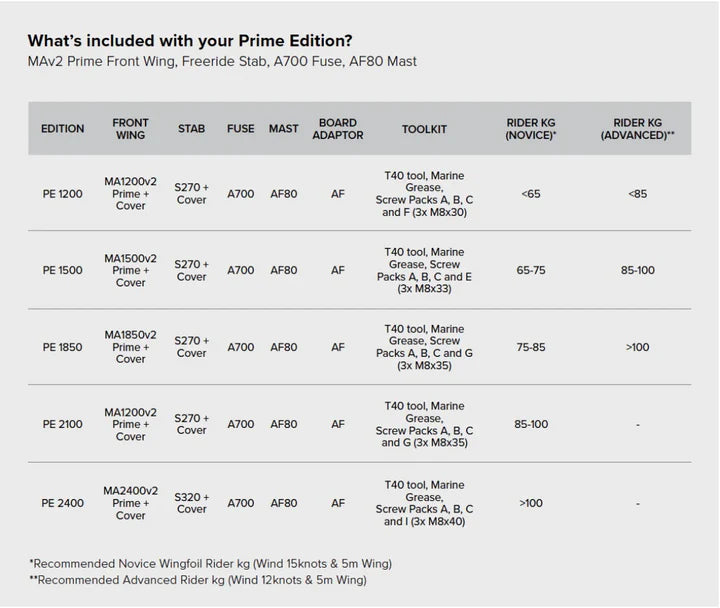

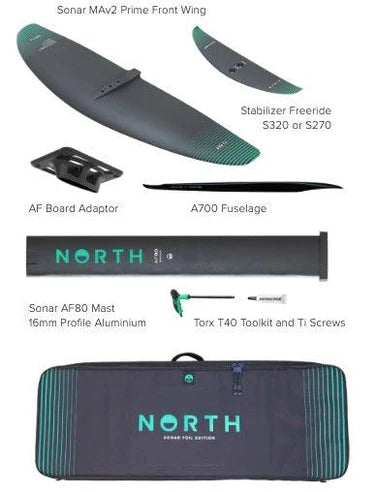

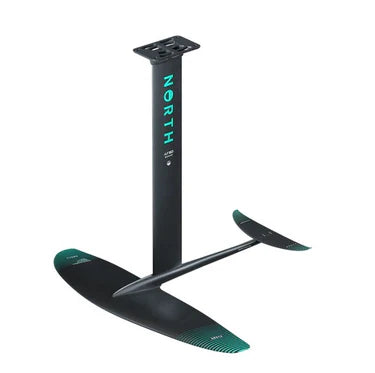

We’ve engineered the MAv2 Prime Edition to make your foiling journey easier, get you over the hump faster and shorten your learning curve. It’s the ideal starter kit for progressing in all foil disciplines. Compatible with all North Foil products and fully interchangeable, the Prime Edition is made up of our Prime Mid Aspect Front Wing (MA1200v2 to MA2400v2), Freeride/0 Series Stabilizer, A700 Fuselage, Aluminium AF80 Mast and AF Board Adaptor. The Prime pre-preg e-glass construction front wings are engineered from the same moulds as our carbon pre-preg front wings and deliver the same high performance, durability and impact resistance as the carbon pre-preg, at a more accessible price. The Prime Edition comes in a spacious, multi-functional, padded bag with compartments for each component, screws, tools and marine grease. All Sonar Foil Systems are compatible with any foilboard with an industry-standard 165x90mm mast track.

Features

  • Mid-aspect foil ideal for progressing in all disciplines
  • High-performance
  • durability and impact resistance at a more accessible price
  • Pitch stable across the entire speed range
  • Controllable early lift and lower stall speed
  • DropBox compatible (165x90mm) foil mounting
  • Torx T40 Tool included
  • only one tool is needed for installation
  • Sonar Marine Grease included – apply prior to assembly
  • Foil-to-board mounting screws sold separately or included with every North Foilboard

Materials

  • Prime Pre-preg E-Glass Construction MAv2 Front Wing
  • All screws are SS316 Stainless Steel M8 Torx T40

**Board mounting hardware sold separately or included with all North boards**

Sonar Edition Bag
We deliver your Prime Edition in a spacious, multi-functional, padded bag with compartments for each component, screws, tools and a quick installation guide.

Think about it, do you want a helmet to protect your melon from impacts! Check out the Mystic Legacy Helmet.

  • Sonar AF72 or AF85 Mast
  • GeoLock Load Bearing Connection
  • NEW S270 Carbon Stabilizer with easy breach recovery
  • Sonar AF Foil Board Adaptor
  • Industry-standard 165x90mm bolt pattern
  • NEW 700mm Fuselage

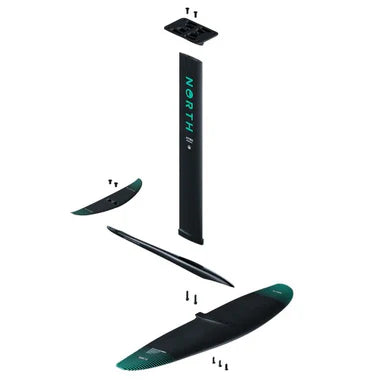

  • Modular foil system
  • Supplied with Sonar Travel Bag
  • Front Wings Sold Separately
  • Foil to board mounting screws sold separately

Sonar AF85 or AF72 Mast

The AF85 mast performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions. The AF72 mast is ideal for shallower waters, and prone surf foiling. Optional 55cm AF mast also available for extremely shallow locations.

GeoLock Load Bearing Connection

Engineered for strength and stiffness, our unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece.

NEW S270 Carbon Stabilizer with easy breach recovery

In perfect harmony with any Front Wing, our new higher aspect, thinner profile carbon pre-preg rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery.

Industry-standard 165x90mm bolt pattern

The Sonar Foil System is designed to work in harmony with our unique DropBox fast-foil mounting system. The Dropbox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight.

700mm Fuselage

It’s forgiving 700mm length improves stability when paired with any wing. Ideal for learning to foil, the longer fuselage delays the pitching moment, giving you more time to react. It's precisely CNC-machined and hydrodynamically-optimized shape offers minimum resistance and features GeoLock. Fits all Sonar Masts.

Modular Foil System

Customise your ride with our fully interchangeable foil components to explore multiple disciplines and riding styles all with one setup.

Supplied with Sonar Travel Bag

Stow your Sonar Quiver safely in between sessions with our Heavy Duty 600D Padded Travel Bag. Roomy enough inside to fit the complete Sonar Foil set, including multiple front wings and masts inside their individual covers.

Front Wings Sold Separately


Foil to board mounting screws sold separately
