2023 Cabrinha H-SERIES MKII Front Wing



2023 Cabrinha H-SERIES MKII Front Wing

H SERIES MkII

HIGH ASPECT FOIL

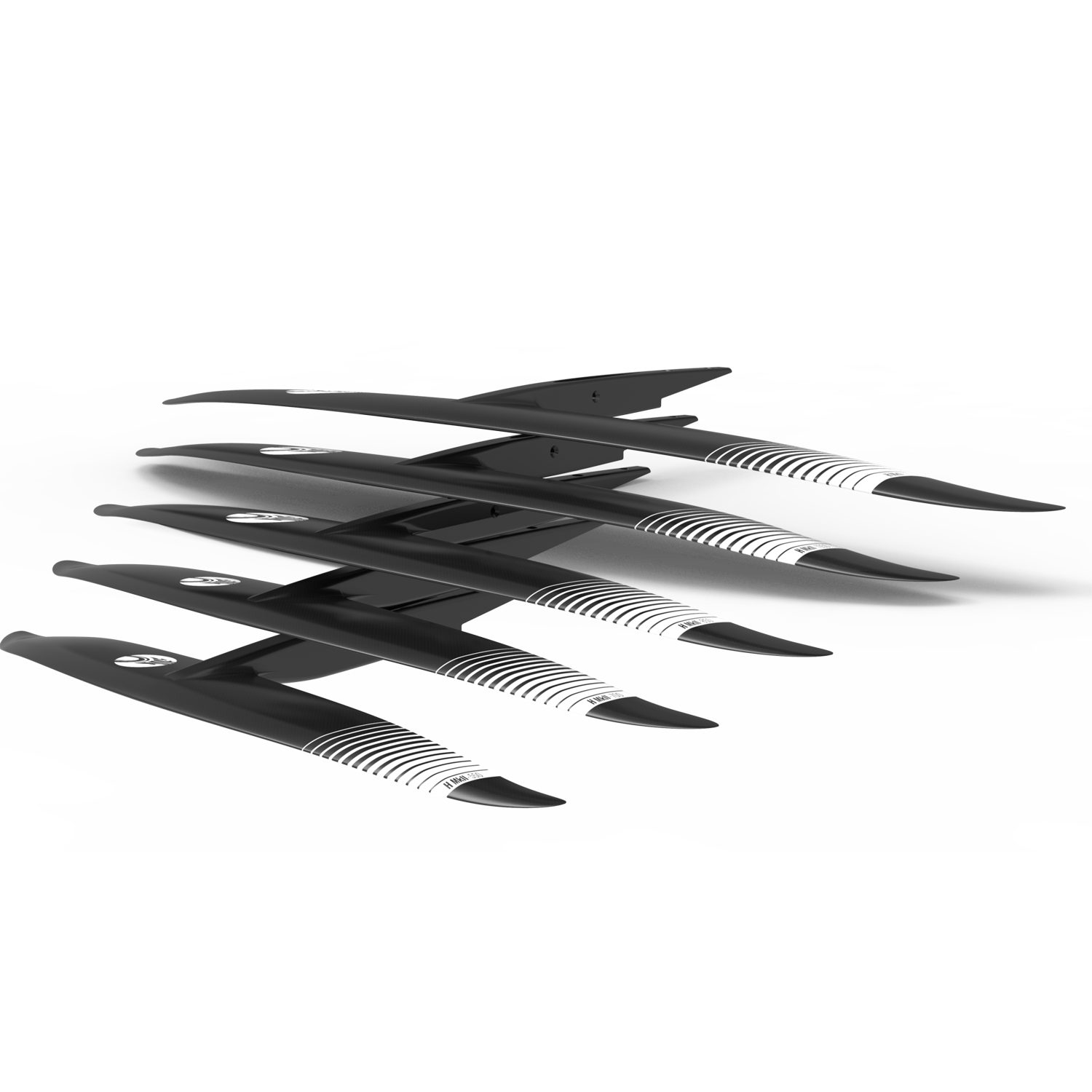

sizes: H550, H700, H850, H1050, H1300

ust when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance.  The design team have implemented new technology learnt from the collaboration with Sintef.  Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation.  This allows more progressive riding and radical turns, be it with a kite, wing or prone.  The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field.  It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.

The Fusion H-Series Kits come with everything you need, you just need to add your mast of choice.   (Masts sold separately)

INCLUDED IN KIT

  • Wing & Stabilizer
  • Fusion Fuselage Alloy Medium
  • Track Nut Train X2
  • Screw Set Foam Core Boards


DESIGN PROFILE
High aspect ratio, swept outline, Ultra lean efficient profile, moderate anhedral with
flared tips


FEATURES
• Ultra Efficient Design
• Ultra Lean Profile
• Refined Tip Shape.
• Tapered Fit
• Increased Torsional Stiffness
• High Apect Ratio
• Barrel Nut Secure Connection
• Pre Preg Carbon Construction
• Modular Design to work with Cab Fusion Products.

 TECH SPECS

  • H550- 550cm², WS 690, AR 9.52, Chord 110mm

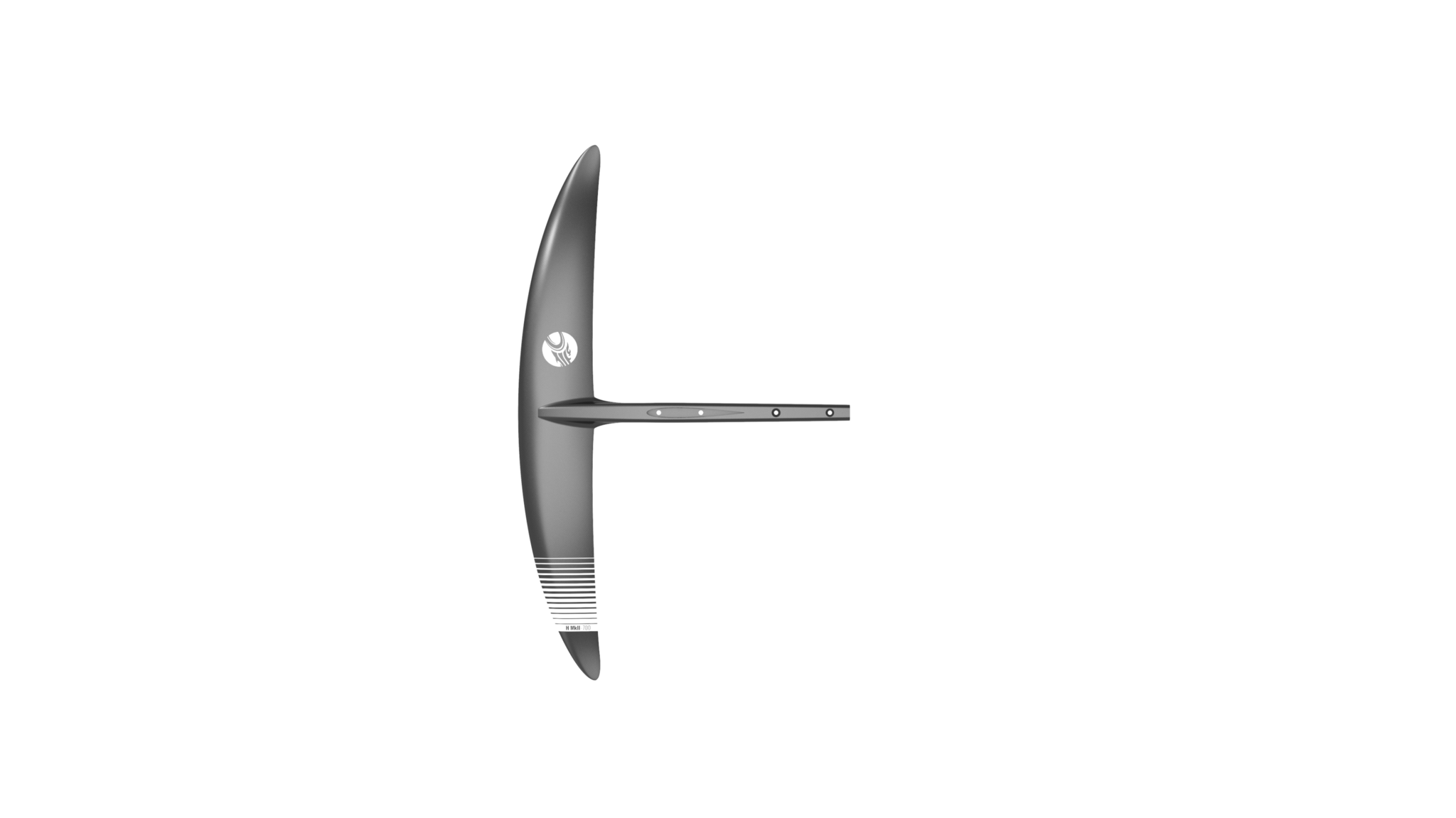

  • H700- 700cm², WS 815, AR 9.49, Chord 120mm

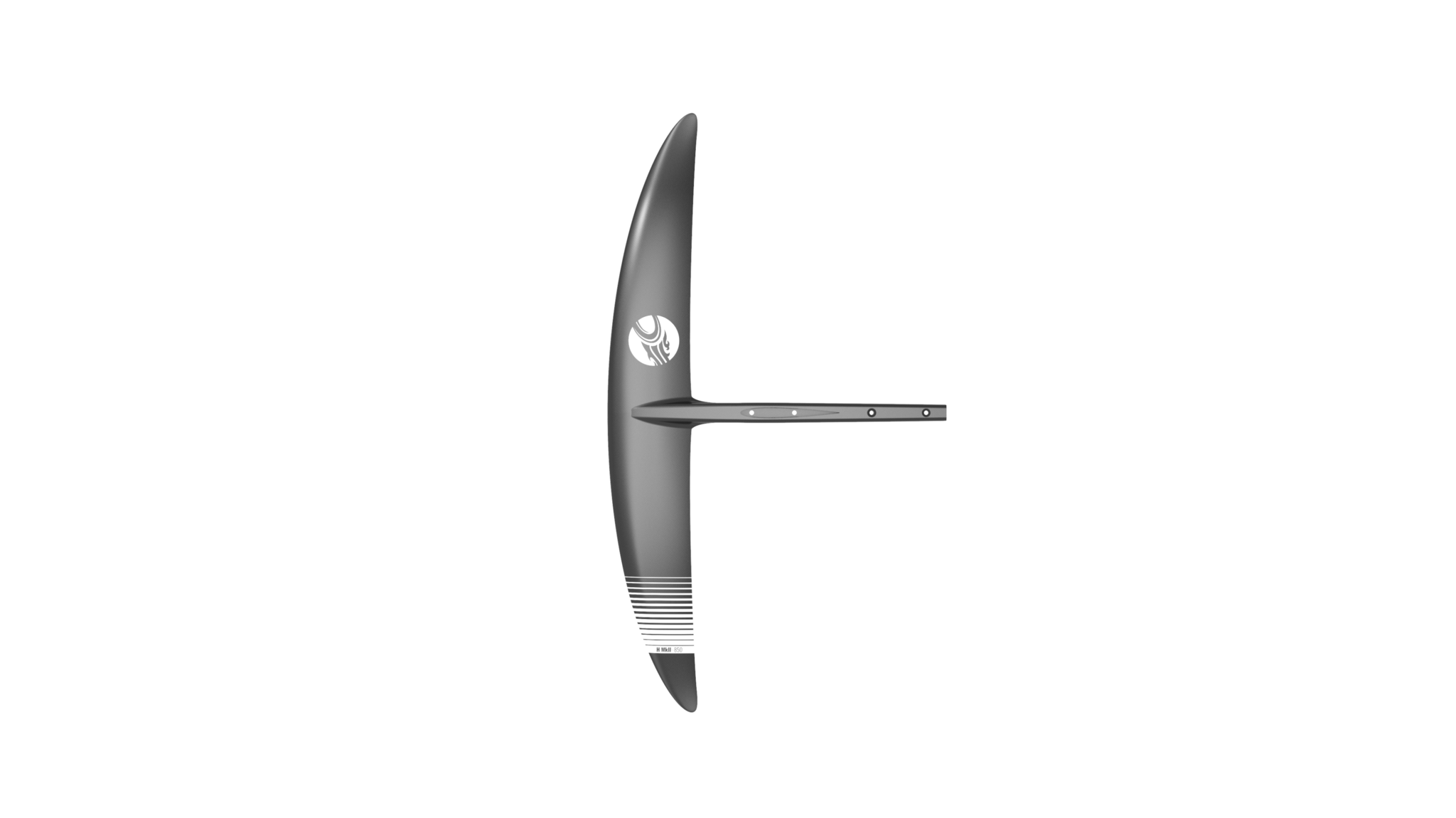

  • H850- 850cm², WS 900, AR 9.53 Chord 130mm
  • H1050- 1050cm², WS 1000, AR 9.52, Chord 140mm

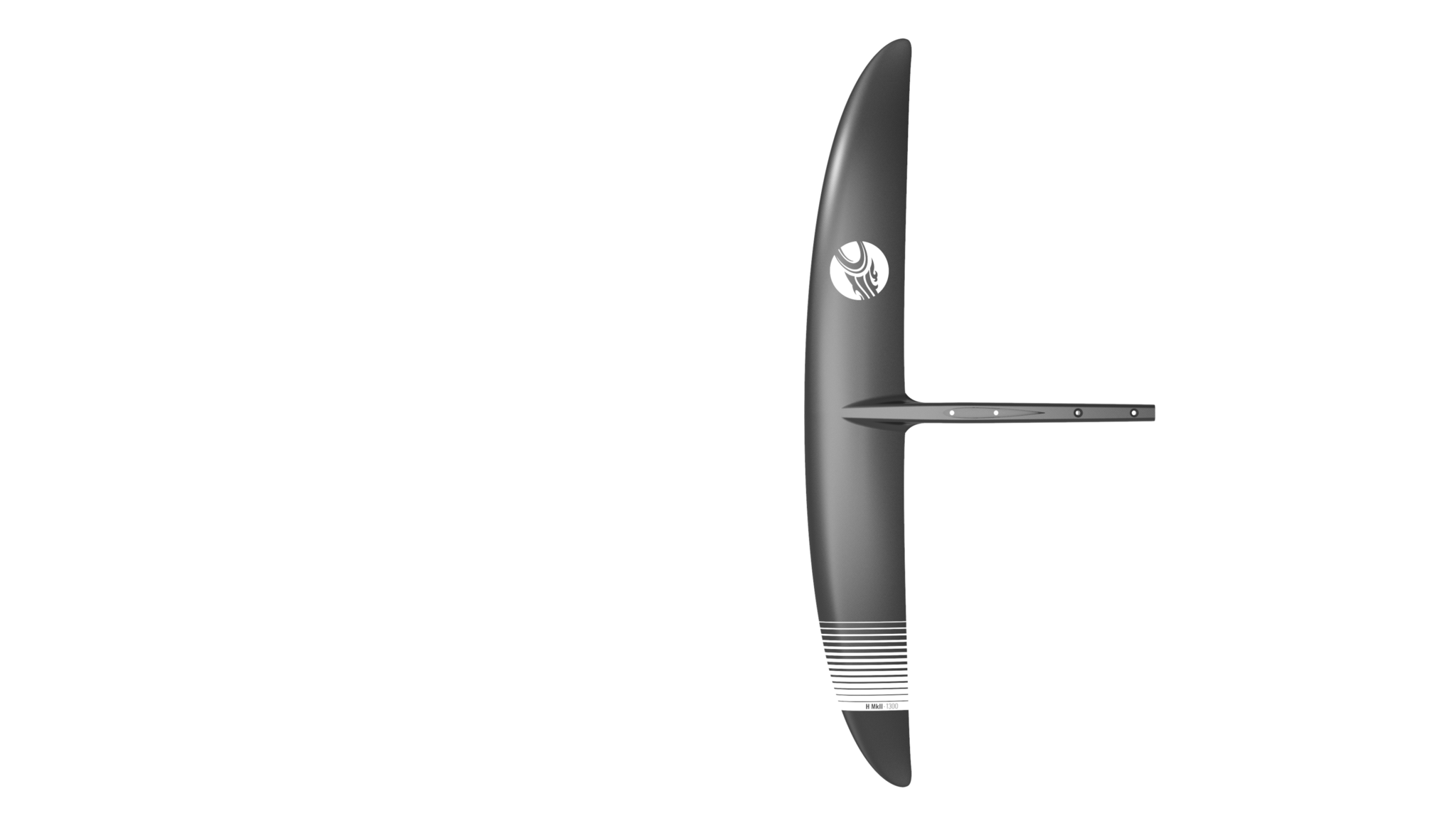

  • H1300 - 1300cm ², WS 1090, AR 9.14, Chord 150mm

  • H800- 800cm ², WS 900mm, AR 9.9, Chord 125mm
  • H1000- 1000cm ², WS 900mm, AR 8.1, Chord 155mm

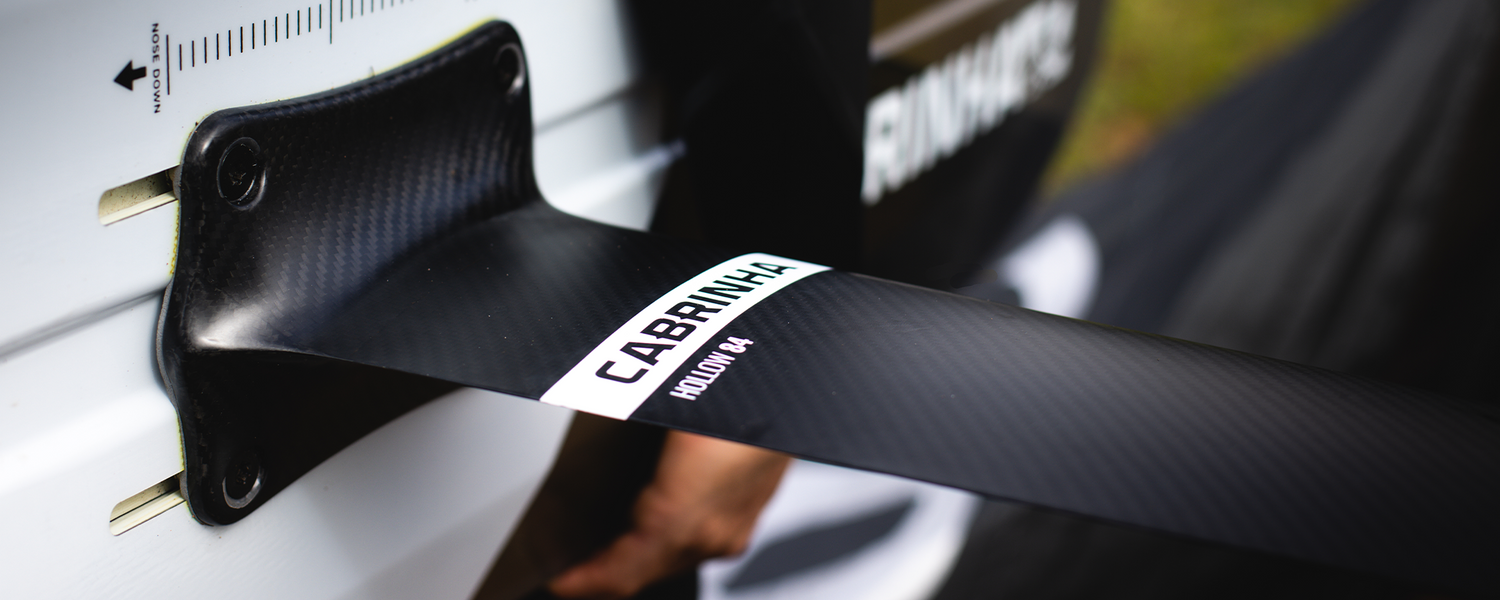

BARREL NUT

The brass through bolt adds torsional stiffness to the wing/mast connection point, providing increased response during turns or while pumping, especially on the larger size front wings.

PRE PREG

Pre coated carbon sheets allow for an extremely accurate level of resin absorption. Combined with an exclusive interweave design that follows the shape and profile of the wings, you have unparalleled levels of torsional stiffness and reflex response.

MODULARITY

The modularity of the CAB Fusion system allows you to seamlessly interchange between any of the X-Series and H-Series front wings and stabilizers.
