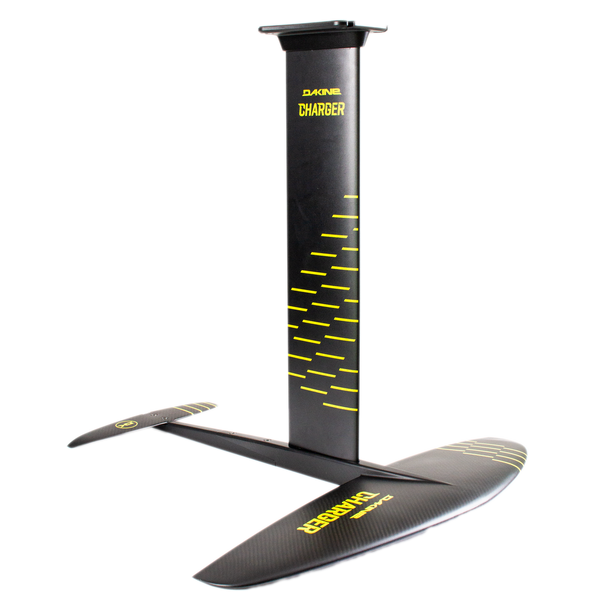

Dakine Charger Foil Kit



Dakine Charger Foil Kit

Sizes: 1300 } 1800 | 1950

Foil Kit - D2HGFCHAKIT130

Dakine's foil kit is light and fast. It is designed to get you charging. This foil is designed to get you out of the water and foiling no matter what your discipline of choice is. These high lift, medium aspect foils are well suited for foil surfing, kite foiling, and wing foiling. The pre-preg carbon wings feature an integrated fuselage for superior stiffness and control. The forward draft profile of the front wing delivers a stable and predictable lift. The kit comes in three sizes 1300, 1600, and 1950. Each kit comes with everything you need: your choice of the front wing, 70cm mast, 346 fuselages and 220 rear wings, and all the required hardware.

MATERIALS

  • Full pre-preg carbon construction
  • EPS Core for superior strength to weight ratio

DIMENSIONS

Included in each kit:

      • 1300 - [ Front Wing-1300 ] [ Mast-70cm ] [ Fuselage-346 ] [ Rear Wing-220]
      • 1600 -  Front Wing-1600 ] [ Mast-70cm ] [ Fuselage-346 ] [ Rear Wing-220]
      • 1950 -  Front Wing-1950 ] [ Mast-70cm ] [ Fuselage-346 ] [ Rear Wing-300]
      • All kits include:  Padded EVA Covers, Torx Tool T30 / T40 and SS316 Screw Set
Front Wing Dimensions:
      • 1300- SA 1300cm², WS 780mm, AR 4.7, Vol 1.6L
      • 1600- SA 1600cm², WS 900mm, AR 5.05, Vol 2.0L
      • 1950- SA 950cm², WS 1000mm, AR 5.13, Vol 2.5L

SA = Surface Area, WS = Wing Span, AR = Aspect Ratio and Vol = Volume.

Rear Wing Stabilizer Dimensions:

      • 220- SA 220cm², WS 370mm, AR 6.4
      • 300- SA 300cm², WS 430mm, AR 6.4
SA = Surface Area, WS = Wing Span, AR = Aspect Ratio.



FEATURES

    • Integrated fuselage with tapered fit
    • Superior torsional stiffness and minimum drag
    • Full pre-preg carbon construction
    • EPS core for superior strength to weight ratio
    • Moderate anhedral for a more efficient lift platform
    • Draft forward profile for a forgiving ride and early predictable lift

Key Features

  1. Moderate anhedral for a more efficient lift platform
  2. Full pre-preg carbon construction
  3. Integrated fuselage with tapered fit
  4. Superior torsional stiffness and minimum drag
